UrbanGlide Electric Fat Bike With 20AH Battery

5 0 Reviews
Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • Model: Sobowo UrbanGlide, Fat Tyre, Electric bike
  • Frame: 6061 Aluminium Alloy
  • Motor: 48V 750W/500W Rear Hub Motor
  • Electronic Controller: Intelligent Brushless
  • Battery Capacity: 48V 20AH Battery with Grade 1 LG cells
  • Throttle: Thumb Throttle
  • Speed Settings: 5
  • Brakes: Tektro Mechanic Disc Brake Levers with Power Cut-off
  • Front Fork: RST Hydraulic Suspension Fork with lockout
  • Display: UKS2 LCD Colour Display with USB charger outlet
  • Lighting: LED Headlight, LED taillights
  • Tyre:26” x 4.0″ Fat Tyre, Kenda
  • Mudguards: Font and rear
  • Recommended Rider Weight: 150 kgs
Price: $ 2399 / pcs
Discount Price: $ 2199 / pcs
  • UrbanGlide

  • SOBOWO

Availability:

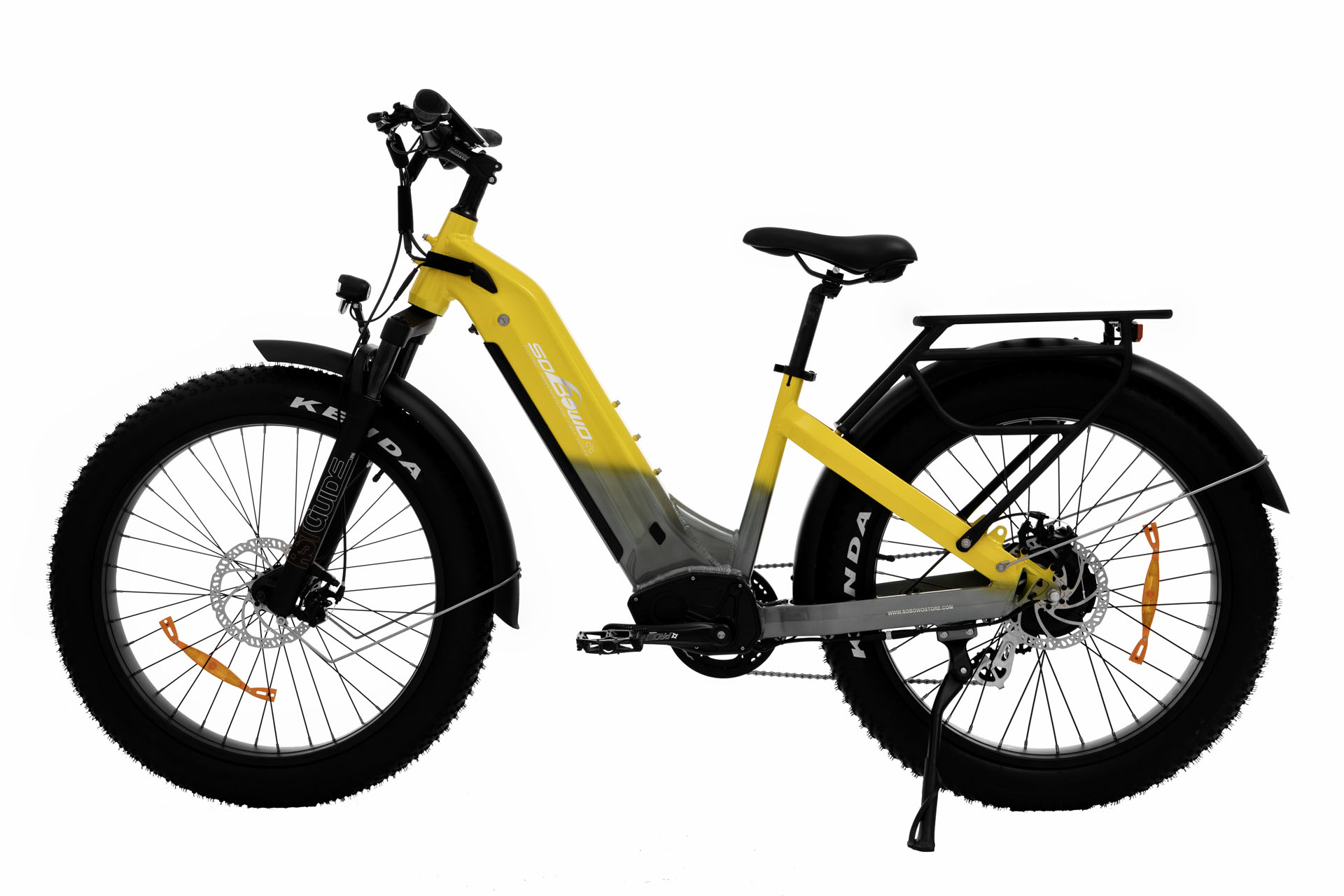

Overview of UrbanGlide electric bike


 Frame Design: Crafted from high-strength 6061 aluminum alloy, the 17-inch frame features a Step-thru style for easy mounting. The irregular-shaped tubing  ensures both durability and aesthetics.


 Integrated Downtube Battery Compartment: The sleekly integrated downtube battery compartment houses a high-capacity 48V20AH battery powered by 21700 cells. This efficient design maximizes power output while maintaining a streamlined appearance.


● Strategically-Positioned Controller Box: The controller box is strategically positioned to offer ample space for excellent heat dissipation, enhanced compatibility, and even the option to accommodate two controllers for a dual-motor system.


● Powerful Motor Options: Equipped with a high-speed 750W or 1000W Bafang brushless rear motor, this model can also be upgraded to a dual-drive version with front and rear 750W motors, allowing you to conquer rugged terrain.


● Versatile Tire Compatibility: The rear dropout of 190mm prevents chain contact with the 26”x4.0” all-terrain or city fat tires, providing a reliable grip.


● Smooth Ride with Hydraulic Front Suspension: The hydraulic front suspension ensures a comfortable ride, while Tektro disc brakes offer reliable stopping power with mechanical and hydraulic options.


● Colorful LCD Display: Stay informed with the LCD display that provides essential information like speed, pedal assist level, and range.


● Effortless Gear Changes: Embrace the precision of the Shimano 8-speed transmission for smooth gear changes.


● Customization Possibilities: The UrbanGlide offers compatibility with add-ons such as a front basket, rear rack, fenders, torque sensor bottom bracket, and even dual motor. Future plans include trailer compatibility for expanded utility.



SPECIFICATIONS




Recommended Specifications of the Model UrbanGlide
Motor:

Battery:

Frame:

48V500W Sobowo Rear Hub Motor


48V20AH LG 21700 cells Lithium Battery Aluminium Alloy 6061, 17inch

Speed:

Range:

Display:

32km/h


48-80km (30-50 miles)*
Sobowo Color Display, 0-5 PAS, Walk Assist Mode

Crank:

Brake System:

Gearing:

Double Sided Aluminum Chainring Guard


Tektro Mechanical Disc Brake
Shimano 8 speeds

Tires:

Rims:

Controller:

Kenda 26"*4.0" K1151E


Double Wall Intelligent Controller Located in Bottom Bracket

Charger:

Fork:

Headlight:

48V3A D-power


RST Guide Hydraulic Suspension Fork
LED Headlight

Throttle:

Net Weight:

Recommended Max. Load Capacity:

Thumb Throttle


35kg(77lbs)* 150kg(330lbs)

Chain:

Pedal:

Kickstand:

KMC Rust-Proof Chain


Wellgo, Alloy Rear Kickstand, Alloy

Carton Dimension (mm):

Qty for 20GP:

Qty for 40HQ:

1620*360*880mm


53 units 140 units


*You can customize your own specifications.

*The range of the electric bicycle's travel distance is influenced by factors such as battery capacity, terrain, speed, assistance level, rider weight, wind resistance, tire pressure, temperature, start-stop frequency, and rider input.

*The weight of the electric bicycle is an estimate. It may vary when using different components.



GEOMETRY




① Seat Tube 432mm | 17"
② Reach 405mm | 15.9"
③ Head Tube 160mm | 6.3"
④ Chain Stay 519mm | 20.4"
⑤  Bracket Height 360mm | 14.2"
⑥  Wheelbase 1240mm | 48.8"
⑦ Standover 470mm | 18.5"
⑧ Top Tube 531mm | 20.9"
⑨ Stack 353mm | 13.9"





sobowo ebike urbanglide sizing




KEY FEATURES


Sobowo PowerGilde Fat Electric bike Controller

Hidden Controller

The controller box of this fat electric bike is strategically positioned at the bottom bracket, offering ample space, excellent heat dissipation, and improved compatibility with a wider range of controllers.

kunpeng battery titantrek ebike

Pull-down Hidden Battery Design

This electric fat bike incorporates the King Kong downtube-integrated battery, allowing for a large capacity that can accommodate up to 80 battery cells. With a maximum capacity of 21Ah, it offers extended usage time and sustained power output.

sobowo ebike fork

Suspension Fork

The Suspension Fork provides improved shock absorption and better handling on rough terrain for this electric bike.


sobowo disc brake

Tektro Disc Brake

The Tektro mechanical / hydraulic disc brake provides powerful and consistent stopping power for e-bikes, with excellent modulation and control.

sobowo powerful motor

Powerful Sobowo Hub Motor

This fat ebike is typically equipped with a 750W or 1000W high-speed motor. It can also be upgraded to a dual-drive version, paired with front and rear 750W motors, giving you the sensation of an adrenaline surge.

sobowo W06 mountain bike display

Backlit Color Display

The bike features a vivid color display, which provides information such as speed, battery level, PAS, ODO, etc at a glance.



Unboxing Video Guide for SOBOWO UrbanGlide Electric Bike


white sheet sponge wrap unitized frame

Bubble sheet wrap the unitized frame again

Special 7 layer carton box



Warranty



Battery & Controller & Display : 12 months

Frame:2 years

Motor:12 months

Company Introduction



  • Sobowo was established in 2014, located in Changzhou city of Jiangsu province, which is 170 kilometers away from Shanghai. As a new but fast-growing group, we integrate manufacturing and trading on green energy electric vehicles.


  • Since our establishment, we are dedicated to creating own unique designs and focusing on becoming a trustworthy OEM solution and service supplier in electric bike industry, not only merely working as an electric bike manufacturer. Our characteristic is to produce the powerful e-bikes and all terrain e-bikes. We are skilled at designing and produce different kinds of fat tire e-bikes. And our e-bikes have been exported to more than 50 countries so far.



  • All of our products can comply with international quality standards and are greatly welcomed in a variety of markets around the world. With strong R&D capability and emphasis on service, we have aimed to earn a reputation as the electric bike specialist and to become one of the most reliable manufacturers who produce high quality electric bikes in China. We are looking forward to your witness to our development!
